Specifications
- 10zig 6800 series thin client computer
- AMD Embedded G-Series
- 2 GB RAM
- 32 GB Storage
- Gigabit LAN using Realtek 8111DL
- DVI-D and DVI-I display output
- 4 USB 2.0 ports (2 front, 2 back)
- Single PS/2 Keyboard and/or Mouse port
- Serial port
- optional Parallel and second Serial port
- optional upgrade to 128 GB Storage
Physical Dimensions
Height: 9.5 inches
Width: 2 inches
Depth: 8 inches
Weight: 3.7 lbs
Power Consumption
Power consumption is 12 Watts, measured with the computer booted to the desktop. This computer consumes less than one Watt if it's plugged in, but switched off.
Disk Layout
The disk is partitioned to provide one bootable volume and one volume for user data. Programs are stored on the boot volume.
| Volume Name | Disk Format | Drive Letter | Volume Size | Disk Name | eCS-N | JFS | N: | 10,000 MB | Disk1 - 29524.0 MiB | Data | JFS | D: | 19,520 MB | Disk1 - 29524.0 MiB |
USB Capabilities
This computer has been tested with the following USB peripherals:| Rosewill USB 2.0 DVD-Writer |
| Blonde Guy 4 GB thumb drive |
| Logitech keyboard |
| Logitech mouse |
Benchmarks
SysBench 0.9.5 benchmarks for this computer. You can download SysBench 0.9.5 here: http://hobbes.nmsu.edu/
| Category | Measurement |
|---|---|
| PM-Graphics-marks | 54 |
| CPU integer-marks | 1593 |
| CPU floating point-marks | 101 |
| DIVE-marks | 1840 |
| File I/O-marks | 77493 |
| Memory-marks | 4141 |
| Simultaneous I/O-marks | 49 |

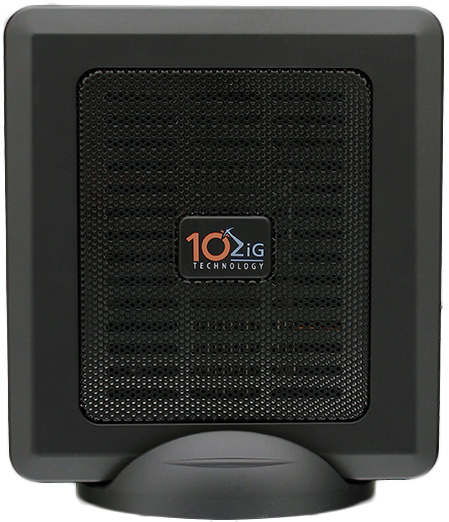

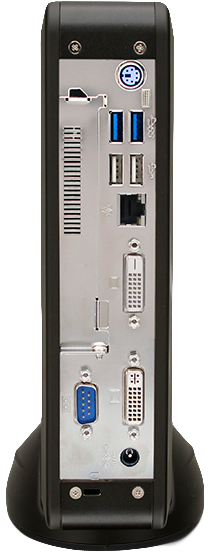

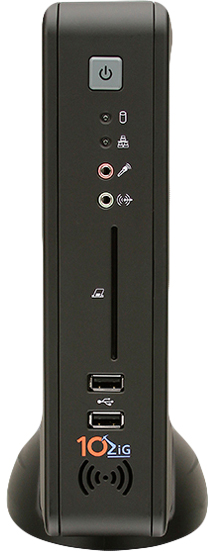

Detailed images of thin client computer
